Facade Studies
Fall 2020
The project is a critical analysis of issued for
construction details of the Sherbourne Park Pavillion, in Toronto, Ontario. The
project was part of a forensic building science class at the University of
Toronto which challenged students to find and redesign issues with the a building
enclosure system. This project queried a hidden roof gutter as it intersected
with a drain as a possible point for water infiltration and redesigned the detail
to limit water build up and extend the life of the flashing.
![Sherbourne Common Pavilion](https://freight.cargo.site/t/original/i/2acac63844aa8bfdb3ef8c9feccb131e1400becc1024d4e04910c10831a1e2e5/ARC2043-Term_Project-Erich_Jacobi_Page_1.png)
Sherbourne Common Pavillion
![](https://freight.cargo.site/t/original/i/2702b44bd183be8df0c8bf6842221e5f4df612659ea41835354822e0220a6bf2/ARC2043-Term_Project-Erich_Jacobi_Page_3.png)
![](https://freight.cargo.site/t/original/i/4a85d0bf37560b54da404104227bb3935c37ed9547360cb1d15d8a5440ba04ce/Screenshot-2020-12-21-202445.png)
![](https://freight.cargo.site/t/original/i/289d35cab8910295e1f6facc3e4ad374c529e51b4540cef6d450b174aa3ad15b/Screenshot-2020-12-21-231016.png)
![](https://freight.cargo.site/t/original/i/104ff6585fed2c599aaac5746cff5fe32eebfe53df097958d7662eaad54cec02/Screenshot-2020-12-21-231102.png)

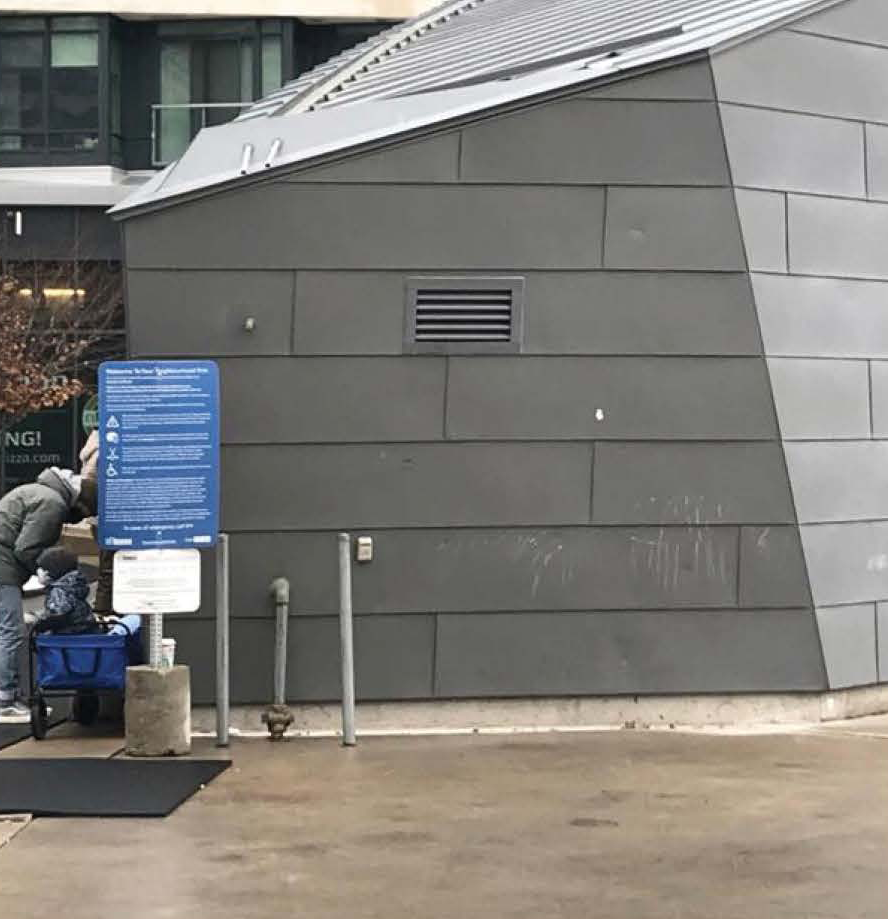

Built Condition
![](https://freight.cargo.site/t/original/i/b018e664731c85adaf2d5576db447e64fb585845d3d4de91aba38b4f28dd9ce6/ARC2043-Term_Project-Erich_Jacobi_Page_4.png)
![](https://freight.cargo.site/t/original/i/9e5254d608ec14c88e3d2274457a8493155ccf7de372dc81fc6b6906acc439a3/ARC2043-Term_Project-Erich_Jacobi_Page_4-2.png)
Detail Modification
![](https://freight.cargo.site/t/original/i/9e583e596eb7b7ba52b978dc64281e10134be6a2b79889c49dbfbe36d8142f1b/Term-Project.png)
![](https://freight.cargo.site/t/original/i/be6239356b67c38d0db948168b2d0e0c4fb4afabdbe645f5edc1b27688551566/Term-Project2.png)
